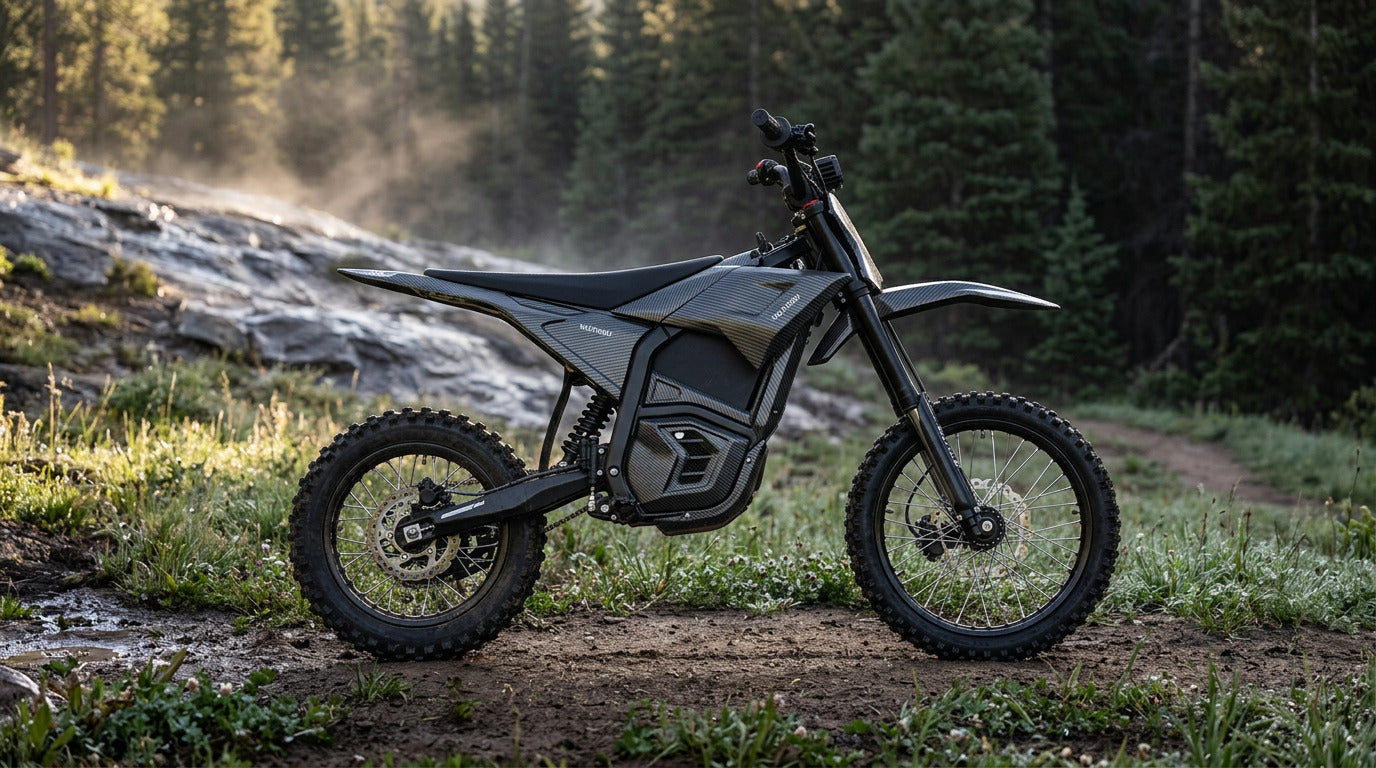

Electric Dirt Bike Wheelbase: Stability, Turning and Trail Fit

Stay In The Know

Expert advice. Very good deals. The absolute best (and worst) things we've tested lately.

Electric dirt bike wheelbase is the distance between the front and rear axle centers. It influences how the motorcycle changes direction, transfers load, tracks through rough ground and fits tight terrain, but it never works alone. Steering geometry, wheel size, mass distribution, suspension, tires, rider position and speed all shape handling alongside it.

Two adult riders face different problems on the same afternoon. One is threading between trees on tight Pine Barrens-style singletrack, hunting for room to turn. The other is crossing an open Moab fire road with shallow washboard, wanting the bike to hold a line without constant correction.

Both are on an electric dirt bike, and the geometry each one needs is different. The temptation is to reach for the simple rule that short means agile and long means stable. On an adult electric off-road motorcycle those are tendencies inside a complete chassis system, not guarantees, and this article is about the difference.

What Wheelbase Actually Measures

Wheelbase is the horizontal distance between the centers of the front and rear axles, with the motorcycle in the manufacturer-defined measurement condition. It is not total bike length, not seat length, not the distance between tire edges, not wheel diameter and not handlebar-to-tail length.

Overall length is the measurement people confuse it with, and it includes bodywork and components reaching beyond both axles. Those two dimensions can move independently, so a motorcycle that looks longer does not necessarily have the longer wheelbase.

Use the exact model and year specification where one exists, which for EM-series bikes means the Valtinsu user manual page. A physical cross-check is straightforward: on level ground with the motorcycle safely supported, find the front axle center, find the rear axle center, and measure horizontally between them in one consistent unit. Never measure along an angled line from axle to axle. A home measurement may differ slightly from the published figure because of rear axle adjustment position, measurement technique, suspension state and manufacturing tolerance, and none of that makes it more authoritative than the specification.

Wheelbase Does Not Tell You the Motorcycle’s Size

Wheelbase, overall length, seat height, handlebar width, wheel size and net weight each describe a different part of the package, and reading one from another goes wrong quickly.

The clearest example is in your own showroom. The EM-5 publishes a 43.3-inch wheelbase with a 28.3-inch seat and 14/12-inch wheels. The EM-5 Pro publishes 41.7 inches with a 31.5-inch seat and 17/14-inch wheels. The Pro has the shorter wheelbase despite the taller seat, the larger wheels and the greater overall length. Never infer wheelbase from how big a motorcycle looks.

That pairing also settles a separate question. Wheelbase is the distance between axle centers, while wheel size describes the rim and tire assembly, and a motorcycle can pair larger wheels with a shorter wheelbase or smaller wheels with a longer one. Fitting different wheels may change other geometry, but it does not automatically change axle spacing.

Short vs Long Wheelbase: The Basic Trade-Off

Characteristic	Shorter wheelbase tendency	Longer wheelbase tendency	Other variables that matter
Direction change	Compact chassis scale may support quicker response	More stretched response through the chassis	Steering lock, rake, trail, tires, rider input
Low-speed maneuvering	Smaller geometric footprint in tight space	Needs more room to place both wheels	Achievable steering angle, balance, ground clearance
Straight tracking	May ask for more frequent small corrections	May feel more settled at speed	Frame properties, tire profile, suspension, speed
Load transfer	Shorter lever between the axles	Longer lever between the axles	Center-of-mass height, rider position, grip
Rough ground	Reacts over a shorter span	Spans irregularities differently	Suspension travel and damping, wheel size
Tight trail fit	Easier to place and reposition	Harder to turn around in narrow space	Trail width, rider skill, motorcycle weight

Read that table as tendencies rather than outcomes. Bringing the axle centers closer reduces the geometric scale of the chassis and may support quicker directional response, and it guarantees nothing about turning circle. Greater axle separation contributes a different load-transfer character, and it guarantees nothing about high-speed stability. Rake, trail, steering lock, tires, wheel diameter, center of mass, suspension, rider input and speed all interact with the number.

Turning Radius Is a Result, Not a Dimension

Axle separation does affect the geometry of a turn, which is why the assumption exists. At the low speeds where a tight turn actually matters, though, the path a motorcycle can follow depends heavily on how far the front wheel can steer, and steering lock is a separate specification from wheelbase.

Handlebar clearance, rider balance, tire profile, lean angle, footpeg and ground clearance and plain control skill all shape the result too. A short wheelbase is a chassis dimension; a tight turning circle is an observed vehicle result. One does not prove the other, and no turning radius appears anywhere in this article for any Valtinsu model, because none has been measured.

Test It Rather Than Assume It

Three controlled observations turn geometry into something you can actually judge: a turning-radius measurement, a low-speed slalom and a straight-line tracking check. All three are only worth running if the variables around them stay fixed, which means the same legal closed surface, the same rider, the same motorcycle configuration, a low-demand speed and a marked start.

For the slalom, record marker spacing, surface, rider, configuration, steering corrections, line consistency, foot-down events and missed gates. Marker spacing must not be chosen to flatter one motorcycle. This distinction matters when reading the result: agility means the motorcycle changes direction with predictable rider input, while nervousness means it demands frequent correction or responds more abruptly than expected. Quicker response is not automatically better.

For straight-line tracking, use a legal predictable straight section and record steering corrections, line drift, rider effort, reaction to shallow irregularities and behavior under mild acceleration and deceleration. Do not stage high-speed instability testing to generate drama.

Blank observation record. No values are supplied, because no test has been run for this article.

Motorcycle stability research has treated handling as a system for decades. Sharp’s work models stability from tire behavior, chassis geometry and rider control together rather than from any single dimension, and later research on rider steering impedance shows the rider’s own arms and torso measurably affect straight-line stability. Wheelbase belongs inside that system, so "longer wheelbase always tracks straighter" is not a claim the literature supports.

Rake, Trail and Mass Distribution Work With It

Rake describes the angular relationship of the steering axis, and trail describes the fore-and-aft relationship between where that axis meets the ground and the tire contact region. Handling research treats these steering-geometry parameters as interdependent, which is why a wheelbase figure on its own predicts very little about steering response. Neither rake nor trail is officially documented for Valtinsu models, so no figure for either appears here, and neither should be estimated from product photographs.

Mass distribution explains why two motorcycles with equal wheelbases can still feel different. Battery location, motor location, rider position, seat location, wheel mass, frame mass and suspension position all place weight differently between the axles. An 80 kg adult standing through a mild Colorado trail transition changes the combined rider and motorcycle mass distribution instantly, while the mechanical wheelbase does not move at all. The wheelbase is fixed chassis geometry; dynamic load distribution changes continuously.

Acceleration and Braking Move Load Along the Chassis

Acceleration transfers load rearward, and axle spacing is one geometric factor in how that longitudinal transfer acts through the chassis. The EM-5 Pro pairs a 5,600W geared motor and 177 lb-ft of listed maximum torque with a 41.7-inch wheelbase, and its internal reduction gearing multiplies low-RPM output torque while chassis geometry and mass distribution influence how that drive force is managed at the tires. A shorter wheelbase does not automatically cause the front wheel to lift, and this article prescribes no wheelie technique.

Braking moves load the other way, toward the front. Wheelbase is part of the longitudinal geometry involved, and so are center-of-mass height, tire grip, brake force, suspension movement, surface and rider position. A longer wheelbase does not automatically prevent rear-wheel lift, and brake-force numbers are not worth calculating without model-specific measurements.

Terrain and Fit Are Separate Questions

On tight wooded singletrack the priorities are frequent direction changes, low-speed steering, narrow path management, rider confidence and a physically manageable motorcycle. A shorter wheelbase may help, though steering lock and rider skill can matter just as much. On an open fire road the priorities shift toward directional consistency, composure over repeated shallow bumps, higher travel speed and predictable chassis movement, where a longer wheelbase may contribute to the feel you want without suspension and steering geometry becoming any less important.

Rider fit is a different measurement entirely, and competitors routinely treat wheelbase as though it were a rider-height chart. Wheelbase describes axle spacing. Fit depends on seat height, peg position, handlebar position, reach, control access, motorcycle weight and your own inseam and proportions. A tall rider does not automatically need the longest wheelbase, and a short rider does not automatically need the shortest. Our fit guide works through the measurements that actually decide it.

EM-5, EM-5 Pro and EM-5 Ultra Chassis Matrix

Specification	EM-5	EM-5 Pro	EM-5 Ultra
Wheelbase	43.3 in (about 1,100 mm)	41.7 in (about 1,059 mm)	41.7 in (about 1,059 mm)
Overall length	61.0 in	65.7 in	65.7 in
Seat height	28.3 in	31.5 in	31.5 in
Wheels	14 / 12 in	17 / 14 in	17 / 14 in
Handlebar width	27.2 in	27.2 in	27.2 in
Net weight	126 lb	143 lb	143 lb
Maximum load	243 lb	287 lb	287 lb

The EM-5 has the longest published wheelbase of the three while being the shortest overall, the lowest, the lightest and the least powerful. That single row is enough to retire the idea that the wheelbase can be read off a photograph or inferred from a bike’s presence. What the matrix does not do is prove a handling difference: it generates hypotheses worth testing with the protocols above, and nothing more.

The EM-5 Pro and the EM-5 Ultra make the opposite point just as cleanly. They publish the same 41.7-inch wheelbase, the same 65.7-inch length, the same 31.5-inch seat, the same 17/14-inch wheels, the same 27.2-inch bar width and the same 143 lb net weight. Yet the Pro runs 60V, 5,600W and 177 lb-ft to 52 mph while the Ultra runs 72V, 8,000W and 203 lb-ft to 56 mph. Identical published chassis dimensions can carry substantially different power systems, so no speed or acceleration difference between those two belongs at the feet of the wheelbase. The Pro is also offered in Volt Green, which changes nothing dimensional.

Sur-Ron and Talaria: Compare With Verified Numbers Only

Model	Published wheel format	Architecture	What still needs verifying
Valtinsu EM-5	14 in front, 12 in rear	Geared mid-drive with chain final drive	Nothing. Wheelbase, length, seat and weight are published
Valtinsu EM-5 Pro	17 in front, 14 in rear	Geared motor with chain final drive	Rake and trail, which are not documented
Sur-Ron Light Bee X	19 in front and rear	Belt primary with chain secondary	Current official wheelbase, seat height and weight
Talaria Sting R MX4	19 in front and rear	Gearbox primary with chain secondary	Current official wheelbase, seat height and weight

Two of those rows are deliberately incomplete. Sur-Ron and Talaria wheelbase and weight figures could not be confirmed against current official product documentation, and dealer-modified measurements are not stock dimensions, so nothing is published here that cannot be verified. Both brands bring real advantages worth naming: Sur-Ron has race pedigree, a deep aftermarket ecosystem, extensive owner setup data and strong resale recognition, while Talaria has an established aftermarket, an active owner community and a large body of real-world setup discussion. Neither can be ranked against Valtinsu on chassis quality from a wheelbase number.

Compare Before You Buy, and Leave the Geometry Alone

Eleven questions do more for a purchase decision than any single dimension. How tight are the turns you actually ride? Is the terrain wooded or open? Is your riding mostly low speed or flowing? How often do you change direction? Does the seat, peg and handlebar relationship fit you? Can you manage the motorcycle’s weight? What wheel size suits your terrain? What suspension does the bike use? Is the published wheelbase verified? Are rake and trail figures available? And can you test the motorcycle legally before committing?

One thing not to do is chase geometry with tools. Moving a rear axle outside the manufacturer’s adjustment procedure, changing swingarm length, altering chain length to hunt for handling, changing fork offset, raising or lowering fork tubes to compensate, changing suspension linkage, fitting different wheels purely to alter wheelbase, fabricating axle slots or modifying frame geometry all change far more than the number you were aiming at. Chain geometry, suspension behavior, tire clearance, steering, braking and stability move with them. Use manufacturer-approved specifications, and if a part is involved, confirm compatibility through the accessories collection and support before ordering.

Conclusion

Wheelbase is axle center to axle center, and it is not overall bike length. Shorter does not automatically mean tighter turning, and longer does not automatically mean greater stability, because steering angle, rake, trail, tires, wheels, suspension, mass distribution and rider input all act at the same time.

Compare geometry in one unit, use controlled low-speed and straight-line observations rather than assumptions, and treat published specifications as selection evidence rather than handling guarantees. Compare the EM-5, EM-5 Pro and EM-5 Ultra chassis dimensions against the terrain you actually ride, and browse the riding guides for the fit and terrain side of the decision.

FAQS

What does wheelbase mean on an electric dirt bike?

It is the horizontal distance between the centers of the front and rear axles, measured in the manufacturer-defined condition. It is not total motorcycle length, which also includes bodywork extending beyond both axles, so the two figures can move independently of each other.

How is wheelbase measured on a dirt bike?

Use the exact model specification first. To cross-check, put the motorcycle on level ground with it safely supported, locate the front and rear axle centers, and measure horizontally between them in one consistent unit rather than along an angled line.

Does wheelbase measure length or width?

Length. Wheelbase is a longitudinal measurement running front to back between axle centers, and it says nothing about how wide the motorcycle is. Handlebar width is the dimension that describes width for threading through tight gaps.

Is a shorter dirt bike wheelbase better for turning?

It tends toward a more compact chassis, which can help in tight space. It does not promise a smaller turning circle, because the achievable path at low speed also depends on steering lock, rake, trail, tire profile, lean, ground clearance and rider control.

Is a longer wheelbase more stable?

Greater axle spacing may contribute to a different stability character, but it cannot predict stability by itself. Tire properties, frame behavior, steering geometry, load, speed, suspension and the rider’s own steering inputs all form part of the same system.

What is the wheelbase of the Valtinsu EM-5?

The EM-5 publishes a 43.3-inch wheelbase, which is roughly 1,100 mm. That makes it the longest wheelbase in the EM-5 family, even though it also has the shortest overall length, the lowest seat and the smallest wheels of the three.

What is the wheelbase of the Valtinsu EM-5 Pro?

The EM-5 Pro publishes 41.7 inches, roughly 1,059 mm. That is shorter than the EM-5 despite the Pro having a taller 31.5-inch seat, larger 17/14-inch wheels and a greater overall length, which is a useful reminder not to judge wheelbase by eye.

Does rider height determine the right wheelbase?

No. Seat height, reach, the peg and handlebar relationship, your inseam, motorcycle weight and control access are all far more direct measures of rider fit. Wheelbase describes chassis axle spacing, which is a different question from whether a bike fits you.

Does wheel size change wheelbase?

Not automatically. Wheel size describes the rim and tire assembly while wheelbase describes axle spacing, and they are separate dimensions. A different wheel or tire may affect other geometry and ride height without moving the axle centers apart.

What electric dirt bike wheelbase is best for trails?

There is no single best number. Match the complete chassis to trail width, typical speed, terrain type, how often you change direction, your skill level, the steering geometry, the suspension and your own fit, rather than shopping on one dimension.
